SUCTION PIPE

Description

SUCTION PIPE – DIN EN 13501-1

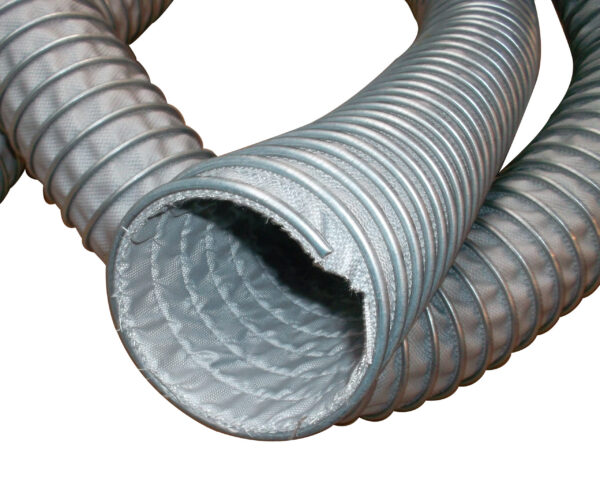

Suction pipe « TUBE HT 450 » made of composite light gray glass fabric with nominal diameters from 50mm – 900mm.
It consists of a double layer of impregnated inner glass and an outer glass fabric coated on both sides with a thermoplastic polyurethane (TPU) with a woven VA thread as well as an outer profiled spiralmade of hot-dip galvanized steel.

Certified M1 – DZ GROUP sprl : n°230011785

• Nominal Diameter : 50mm-900mm
• Thickness of the profiled spiral : ± 3,5mm
• Thickness of the inner fabric : ± 0,23mm
• Thickness of the outer fabric : ± 0,66mm
• Fabric color : Grey
• Ranking : M1
• Fire behavior : B
• Smoke release : S2
• Droplets and flaming particles : d0

* Certification M1 – DZ GROUP n°230011785 from 21/01/2019

* For fixation, use only an helical thread clamp for spiral suction pipe
