S Series

S SERIES POWER STATION

Portable Power Stations from 2500W to 5000W

Equipped with 16 output ports—including AC, USB-A, USB-C, and 12V DC options—it can simultaneously power multiple devices, from smartphones to power tools. The unit supports four charging methods: wall outlet, car socket, solar panels, and EV charging, with rapid recharge capabilities reaching full charge in approximately 2 hours via AC input. Its integrated UPS function provides seamless power during outages, while the smart app allows for remote monitoring and control. Weighing around 50kg and featuring wheels and handles, the S5 combines portability with high-capacity performance, making it an ideal companion for camping, construction sites, and home emergencies

The Sun as our best friend.

The DZ Group S Series generator supports solar input of up to 1200W, allowing you to connect high-efficiency solar panels for fast, eco-friendly charging. Thanks to its compatibility with solar energy, the S Series offers true energy independence—no need to rely on the grid or fuel. Whether you're off the beaten path or preparing for emergencies, this solar capability ensures a sustainable, self-sufficient power solution wherever you are.

Charge your Car

Use AC charging gun (car charging station/portable charging gun) tocharge this product. Connect the charging gun to the product, and the inputpower reading appears on the screen.

Extend the Power

The DZ Group S Series generator is designed for scalability, offering the option to connect an additional extension battery. This powerful feature significantly boosts your total energy capacity, giving you longer runtimes and the ability to power more demanding devices. Whether you're running essential appliances during an outage or need extended energy support off-grid, the expandable battery system ensures that the S Series grows with your power needs. Delivering reliable, uninterrupted performance when it matters most.

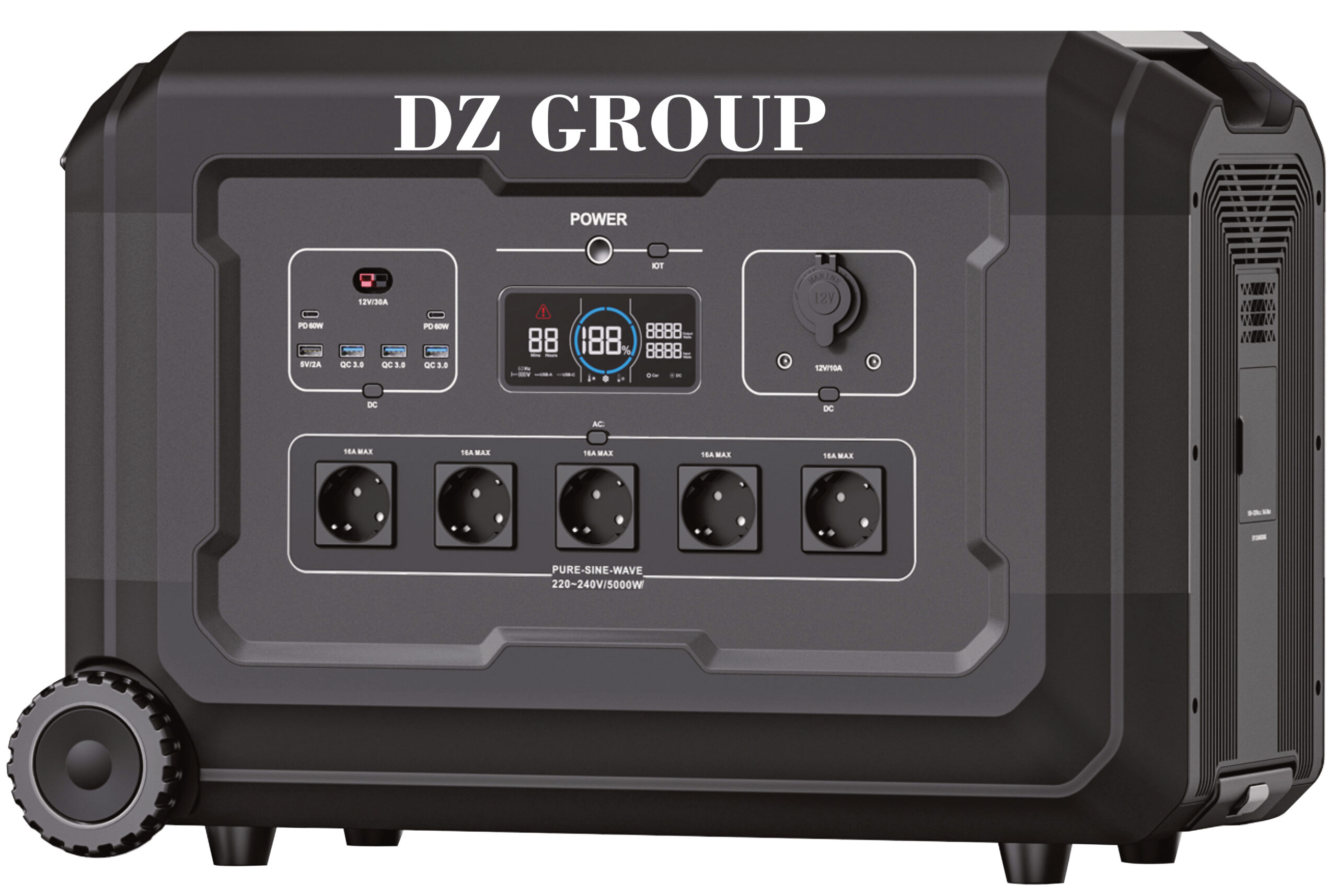

S5

AC OUTPUT :

220V~240V; 5000W (Peak 7000W)

CAPACITY :

5040Wh (48V; 105Ah)

DC OUTPUT :

12V/10A

PV OUTPUT :

12V/30A

USB-A OUTPUT (*4) :

5V/3A; 9V/2A; 12V/1.5A (18W Max) ; 5V/2A 12V/30A

USB-C OUTPUT (*2) :

5V/3A; 9V/3A; 12V/3A, 15V/3A; 20V/3A, (PD 60W Max)

AC INPUT :

220~240Va.c; 16A Max; 2500W Max

PV INPUT :

12~150Vd.c; MPPT 18-140V 15A Max; 1200W Max

WAVEFORM :

Pure Sine Wave

Size & Weight

641.5 x 304.5 x 437.5 mm / 50 kg

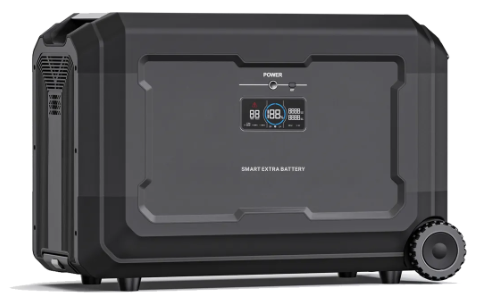

S5-BAT

AC OUTPUT :

220V~240V; 5000W (Peak 7000W)

CAPACITY :

5040Wh (48V; 105Ah)

DC OUTPUT :

12V/10A

PV OUTPUT :

12V/30A

WAVEFORM :

Pure Sine Wave

Size & Weight

641.5 x 304.5 x 437.5 mm / 50 kg

S3

AC OUTPUT :

220V~240V; 3600W (Peak 7000W)

CAPACITY :

3072Wh (51,2V; 60Ah)

DC OUTPUT :

12V/10A

PV OUTPUT :

12V/30A

USB-A OUTPUT (*4) :

5V/3A; 9V/2A; 12V/1.5A (18W Max) ; 5V/2A

USB-C OUTPUT (*2) :

5V/3A; 9V/3A; 12V/3A, 15V/3A; 20V/3A, (PD 100W Max)

AC INPUT :

220~240Va.c; 16A Max; 2500W Max

PV INPUT :

12~150Vd.c; MPPT 18-140V 15A Max; 1200W Max

WAVEFORM :

Pure Sine Wave

Size & Weight

641.5 x 304.5 x 437.5 mm / 37,8 kg

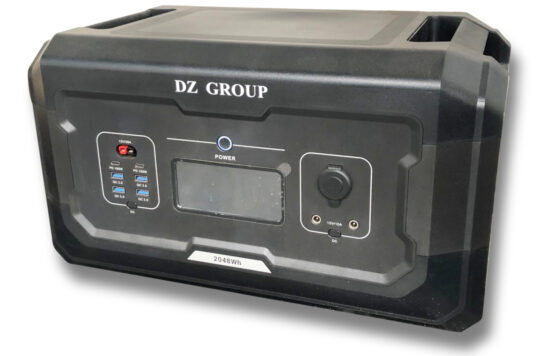

S2-BAT

AC OUTPUT :

220V~240V; 2600W (Peak 3600W)

CAPACITY :

2048Wh (51,2V; 40Ah)

DC OUTPUT :

12V/10A

PV OUTPUT :

12V/30A

USB-A OUTPUT (*4) :

5V/3A; 9V/2A; 12V/1.5A (18W Max)

USB-C OUTPUT (*2) :

5V/3A; 9V/3A; 12V/3A, 15V/3A; 20V/3A, (PD 100W Max)

AC INPUT :

220~240Va.c; 16A Max; 2500W Max

PV INPUT :

12~150Vd.c; MPPT 18-140V 15A Max; 2100W Max

WAVEFORM :

Pure Sine Wave

Size & Weight

460 x 270 x 305 mm / 19 kg
