FB Series

Engineered for Demanding Heavy-Duty Applications

Where standard power stations reach their limits, the FB Series thrives. It is the ultimate choice for critical sectors requiring reliable, continuous, and high-capacity electricity:

Massive High-Voltage Architecture:

Equipped with a premium 100.352 kWh Lithium battery system operating at a high-efficiency nominal voltage of 358.4 Vdc. Built for extreme longevity, it guarantees over 8,000 continuous cycles (at 80% DOD, 25°C) to deliver a decade-plus of worry-free service.

Robust Three-Phase Power Output

output power of 30 kVA (surging up to 33 kVA) of pure, clean sine wave electricity at 400V/230V, it easily handles high-inrush currents and sensitive electronic equipment alike.

Next-Generation Solar Harvesting

Maximize your solar yield with a massive 38.4 kW PV input capacity and a wide MPPT tracking range (200 Vdc - 830 Vdc), allowing for optimized string configurations even under variable weather conditions.

Smart EMS & Smart Generator Automation:

Total energy harmony. The built-in Energy Management System (EMS) features integrated dry contacts and automatic ATS support. It can instantly signal, start, and manage an auxiliary diesel generator to secure your power supply during extended blackouts.

Rugged, Efficient & Fully Certified:

Built to withstand environments ranging from -23°C up to +65°C and altitudes up to 3,500 meters, this 1000 kg heavy-duty unit operates at a stellar global efficiency of 97.8%. It is rigorously certified to the latest European standards, including the new EU 2023/1542 Battery Regulation.

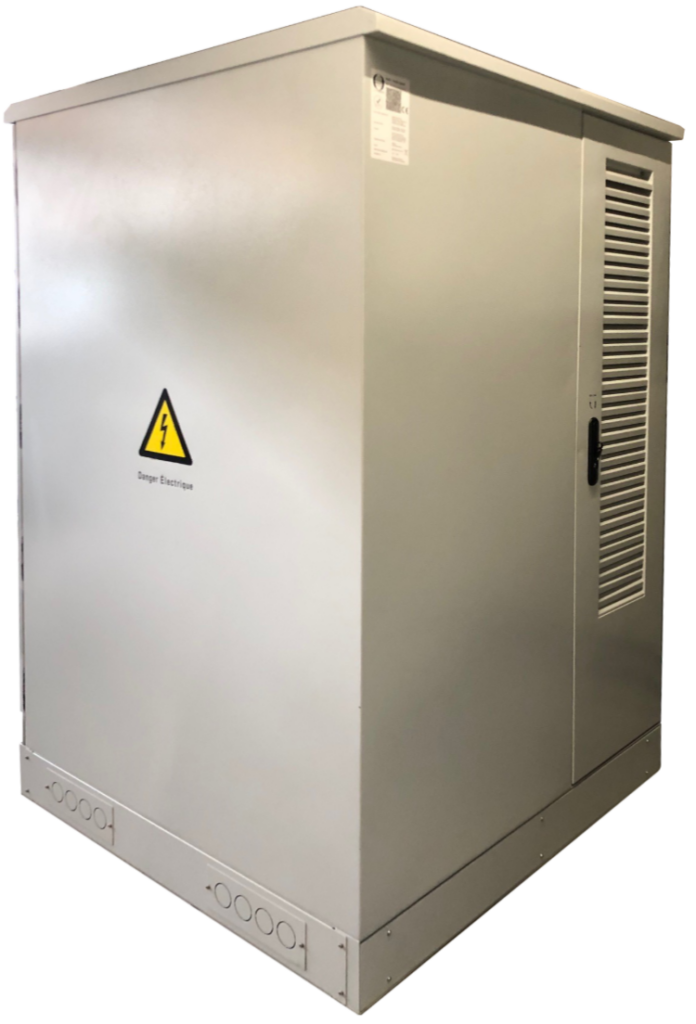

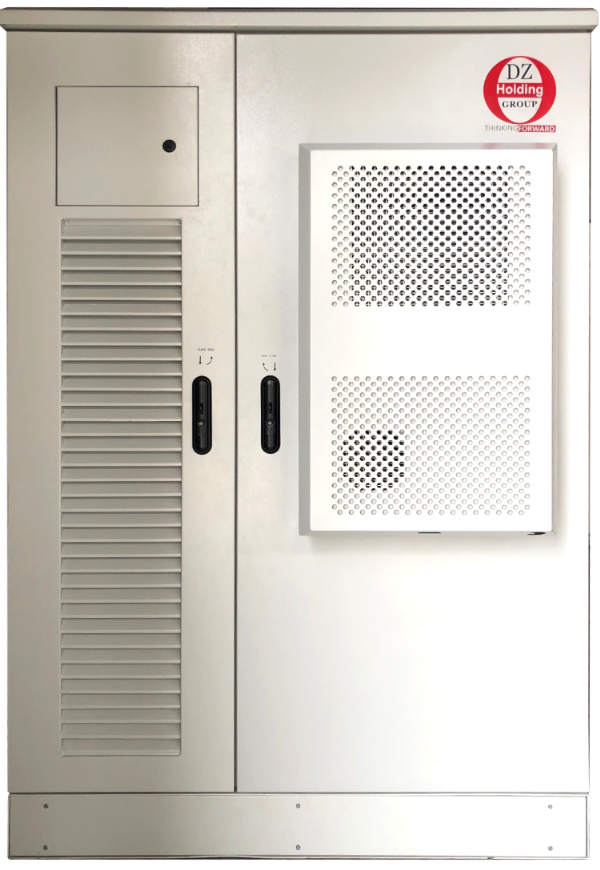

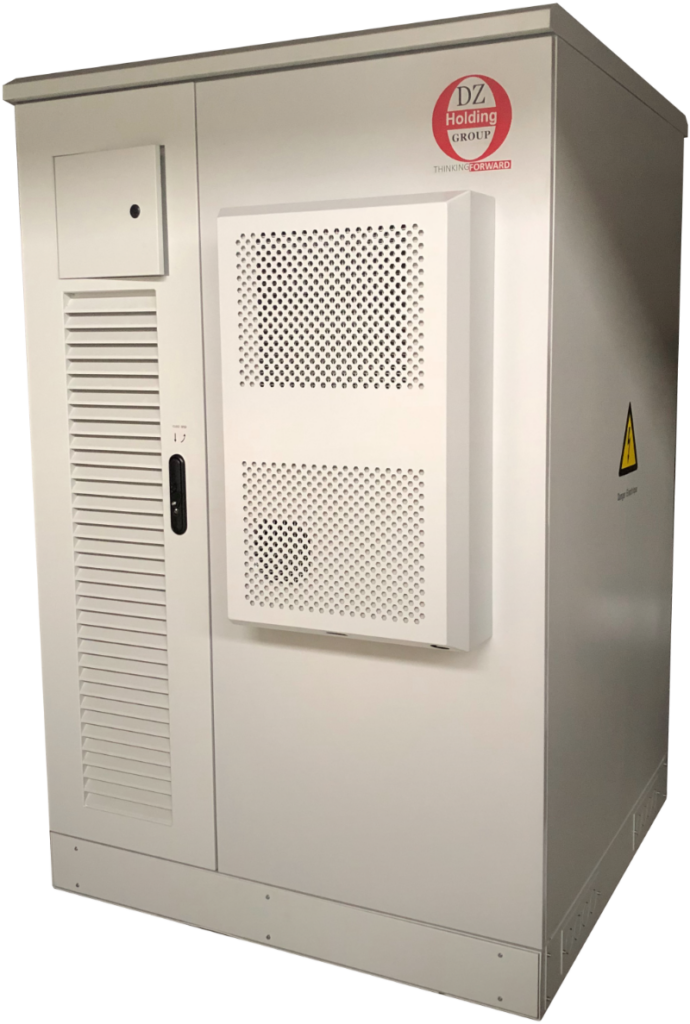

FB-030K-100kWH

AC OUTPUT (OFF-GRID / GRID OUTPUT)

Rated Output Power : 30 kVA

Output Waveform : Pure Sine Wave

Output Voltage : 400V / 230V AC

Frequency Range : 50 Hz - 60 Hz

Output Overload Capacity : 1.25% / 10s

BATTERY SYSTEM

Nominal Voltage : 358.4 Vdc

Total Nominal Capacity : 100.352 kWh

Max Battery Voltage : 850 V

Minimum Voltage : 200 V

Max Charger Current : 100 A

Life of Cycle : 8000 cycles (@ 80% DOD, 25°C)

PV INPUT

PV Input Max Power : 38.4 kW

Max PV Voltage : 850 Vdc

MPPT Voltage Range : 200 Vdc - 830 Vdc

Max PV Charging Configuration : 32A + 32A

Download Full Specs
